CNC laser cutting equipment for Stainless steel craftwork laser metal cutting machine
Product Features:
High performance qualified fiber generator,high reliability and longevity service.
Gantry design,double drive,higher cutting speed and efficient,
Smooth cutting surface,little deformation,pretty leveling appearance.
Free maintenance for fiber laser generator,Max life reach to more than 100000 hours.
Dedicated software enables graphic or text into instantly designed pr processed.
Application:
Fiber laser cutting machine widely applied to cutting all kinds of sheet metal plate,such as stainless
steel,mild steel,manganese steel,galvanized steel,alloy steel,rare metal etc.Widely used in electric
appliance,high-low-voltage electrical cabinet production,lighting&hardware,advertisement,automobile
parts,display equipment and other sheet metal industry.
Technical Parameter:
| Item Name | Parameter |
| Model | SL-3015F-1000W |
| Laser power | 1000W |
| Laser wavelength | 1070nm |
| Laser type | Raycus fiber laser |
| Max positioning speed | 80m/min |
| X/Y axis positioning accuracy | ±0.05mm/m |
| X/Y axis repositioning accuracy | ±0.03mm |
| Cutting thickness | Less 20mm ( carbon steel ) |
| CNC cutting table size | 3000×1500mm |
| Power supply requirement | 3 phase 380V,50-60Hz,60A |
| Package | Standard export wooden case |
| Material | Thickness(mm) | Cutting speed m/min | Auxiliary gas |
| Carbon Steel | 1 | 9.6 | O2 |
| 2 | 3.9 | O2 |
| 3 | 2.1 | O2 |
| 4 | 1.2 | O2 |
| 5 | 0.9 | O2 |
| 6 | 0.6 | O2 |
| Stainless steel | 0.5 | 15 | N2 |
| 1 | 10.8 | N2 |
| 2 | 4.2 | N2 |
| | 3 | 2.7 | N2 |

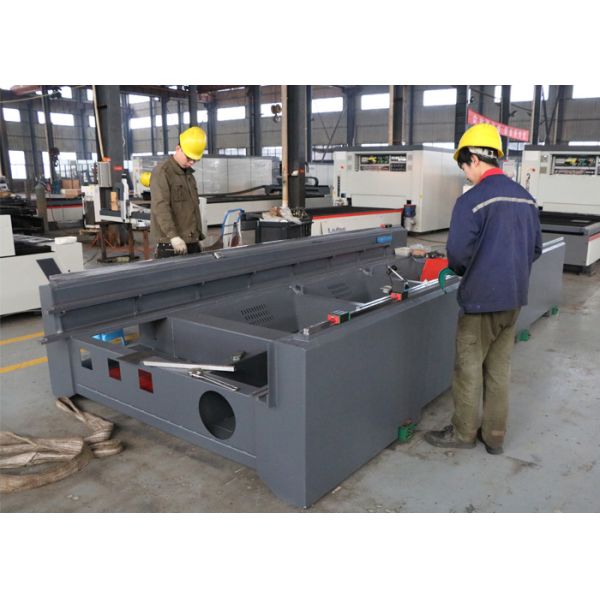

CNC machine tools:
Each plate welding machine tool must be fine welding and meticulous grinding
Each steel plate welding machine should be T6 heat treatment to eliminate stress
After each tempering steel welding machine are imported gantry machining center processing,
To ensure that the machine straightness and flatness.
Welcome inquiry / welcome viist our factory see machine.
1). 1 year warranty for the whole machine
2). 2 years warranty for the fiber laser source
3). Life-long maintenance
4).In the warranty period,if it break down or some parts damaged(Except the human factors and the
factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced
will be provided from seller for free(Except the quick-wear part).
5). After the warranty period expired,the buyer only need to pay the actual maintenance cost.
6).Some customer, we will pay a return visit for several times one year,and will provide technical support service anytime,and also provide spare parts anytime the buyer want.
7).After sales service response time: quick response within 8 working hours,after receive the repair call, our after sales engineer will reply as soon as possible.
