Portable 3W UV Laser Marking Engraving Machine / UV Laser Marking Equipment EZCAD software
Product Description:
UV laser is the general name of the solid laser at the output band in the ultraviolet region (10nm-400nm).
The reaction mechanism of the UV laser marking machine is realized by photochemical ablation, that is,
the bonding between atoms or molecules is interrupted by laser energy, make it vaporization and
vaporization of small molecules. UV laser marking machine has good beam quality and smaller focusing
spot, and can realize ultra fine marking. Most materials can absorb ultraviolet laser. Hence the wider range
of applications.
Product Application:
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
Nanjing Speedy Laser 3W 5W UV laser marking machine
| Item Name | Technical Parameter |
| Model | SLP- UV3W |
| Laser power | >3W@40kHz |
| Laser wavelength | 355nm |
| Laser type | Solid UV laser source |
| Pulse duration | ﹤10ns@40kHz |
| Frequency range | 20-200KHZ |
| Beam quality | M2≤1.2 |
| Beam Circularity | > 90% |
| Polarization Ratio | ＞100:1 |
| Polarization Orientation | Horizontal |
| Pulse-to-Pulse Stability | RMS ≤3%@40KHz |
| Beam Full Divergence | < 2mrad |
| Ambient temperature | 0-40℃ |
| Rated power consumption | 500W |
| Operating voltage | 110V- 240V/50-60Hz/15A |
| Cooling | Air Cooling |

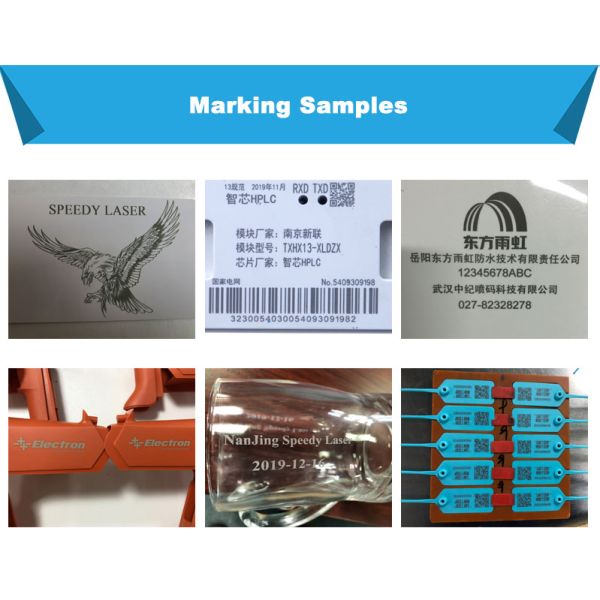

UV Laser marking samples:
